Branch Indoor Optic Cable 6 8 12 24 36 cores Single Mode G652D For Distribution
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
걱정이 있으시면 24시간 온라인 서비스를 제공합니다.
x제품 상세 정보
| 제품 이름 | 분기 케이블 | 재킷 | PVC /LSZH |
|---|---|---|---|
| 강도 부재 | 아라미드 얀 | 섬유 | 단일모드 / 멀티 모드 |
| 브랜드 | Ebocom 또는 OEM | ||
| 강조하다 | Indoor Optic Cable 36 Cores,24 Branch Indoor Optic Cable,6 Branch Indoor Optic Cable |
||
제품 설명
Description
This is a multi-purpose optical fibre branch cable with a twisted cable structure. It is composed of tight buffer fibre, FRP and aramid strength components. External PVC or LSZH jacket.
The optical fibre branch cable is a kind of stranded multi-purpose cable. For example, it is widely used as indoor power distribution cables and backbone cables in buildings.

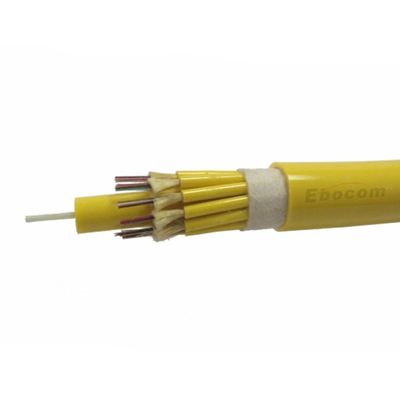

All tight cushioning fibres are wrapped and protected with aramid yarn. Tight cushioning fibre and aramid yarn are completed separately from the base jacket. Then, all fibre units revolve around fibre-reinforced plastic centre strength elements. Waterproof tape can be added between the stranded unit and the external PVC or LSZH sheath.
Features
Central FRP strength member
Stranded tight buffer fiber units provides excellent tensile performance
Corrosion resistant and waterproof outer sheath
Environment friendly jacket material
Flame retardant outer sheath for indoor and building safety application
Aramid yarn in tight buffer fibers also improves the tensile standard
Applications
Mainly used for indoor wiring and connections between various indoor communication equipment, between equipment and instruments, and between instruments.
- Duplex optical fiber active link jumpers and pigtails;
- Indoor shaft level and forced ventilation level wiring;
- Interconnection of instruments and communication
