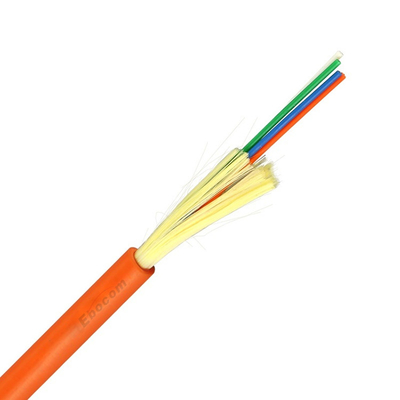

Indoor Optic Cable 12 24core Multimode OM1 OM2 OM3 OM4 Distribution Use
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
걱정이 있으시면 24시간 온라인 서비스를 제공합니다.
x제품 상세 정보
| 제품 이름 | GJFJV/GJFJH | 재킷 | PVC /LSZH |
|---|---|---|---|
| 강도 부재 | 아라미드 얀 | 섬유 | 단일모드 / 멀티 모드 |
| 브랜드 | Ebocom 또는 OEM | ||
| 강조하다 | Multimode Indoor Optic Cable,OM1 Indoor Optic Cable,Distribution Indoor Optic Cable |
||
제품 설명
Description
Indoor optical cables are a high-speed data transmission medium used to connect devices within buildings or data centers. They consist of optical fibers encased in protective sheaths and are designed for data transmission over relatively short distances. When optical cables are used indoors, safety and practicality are the main considerations. Therefore, optical cables for indoor use should be free of metals, halogens, be highly flexible, lightweight, and feature a completely dry design.
In recent years, indoor optical cables have become an important component of modern communication networks, as they can provide fast and reliable connections for enterprises, families and other organizations. Whether you are building a new data center, upgrading telecommunications infrastructure, or simply hoping to improve the speed and reliability of your internet connection, indoor optical cables can offer powerful solutions to meet your needs.
Applications
Mainly used for indoor wiring and connections between various indoor communication equipment, between equipment and instruments, and between instruments.
Mechanical Specifications
| Cable Model | Outer Diameter
(mm) |
Weight
(kg/km) |
Tensile Strength(N) | Crush Resistance(N/100mm) | Bending Radius | Jacket Thickness(mm) | |||
| Long term | Short term | Long term | Short term | Dynamic | Static | ||||
| GJFJV-2F | 3.6±0.2 | 12.5 | 180 | 440 | 300 | 1000 | 20D | 10D | 0.45±0.05 |
| GJFJV-4F | 4.7±0.2 | 17.6 | 180 | 440 | 300 | 1000 | 20D | 10D | 0.8±0.1 |
| GJFJV-6F | 5.2±0.2 | 22.8 | 180 | 440 | 300 | 1000 | 20D | 10D | 0.9±0.1 |
| GJFJV-8F | 5.8±0.2 | 26.7 | 180 | 440 | 300 | 1000 | 20D | 10D | 0.9±0.1 |
| GJFJV-12F | 6.3±0.2 | 32.7 | 180 | 440 | 300 | 1000 | 20D | 10D | 0.9±0.1 |
| GJFJV-24F | 8.0±0.2 | 53 | 200 | 660 | 300 | 1000 | 20D | 10D | 1.0±0.1 |
