Indoor Colored Optical Fiber Cable gjfjv 2 4 12 24 Core SM MM G652D G657A1 OM3

  • Indoor Colored Optical Fiber Cable gjfjv 2 4 12 24 Core SM MM G652D G657A1 OM3
  • Indoor Colored Optical Fiber Cable gjfjv 2 4 12 24 Core SM MM G652D G657A1 OM3
  • Indoor Colored Optical Fiber Cable gjfjv 2 4 12 24 Core SM MM G652D G657A1 OM3
원래 장소 산둥, 중국
브랜드 이름 EBOCOM
인증 ISO TLC
모델 번호 GJFJV
최소 주문 수량 2000m
가격 EXW ≥2000m $0.18/M ≥5000m $0.14/M
포장 세부 사항 1철-나무 드럼 또는 비흡연 나무 드럼,정상적인 나무 드럼. 2. 드럼 크기는 컨테이너에 적합하도록 설계 할 수 있으며 자세한 계산이 필요합니다.
배달 시간 5-8일
지불 조건 T/T
공급 능력 5000KMS/일

무료 샘플과 쿠폰을 받으려면 연락하세요.

왓츠앱:0086 18588475571

웨이 채팅: 0086 18588475571

스카이프: sales10@aixton.com

걱정이 있으시면 24시간 온라인 서비스를 제공합니다.

x
제품 상세 정보
모델 튼튼한 버퍼 광섬유 케이블 브랜드 에보콤/OEM
길이 맞춤형 케이블 피복 PVC, LSZH,PE
섬유 종류 SM / MM 강도 부재 아라미드 얀
강조하다

G652D Indoor Colored Optical Fiber Cable

,

24 Core Optical Fiber Cable
메시지를 남겨주세요
제품 설명

Product Introduction:

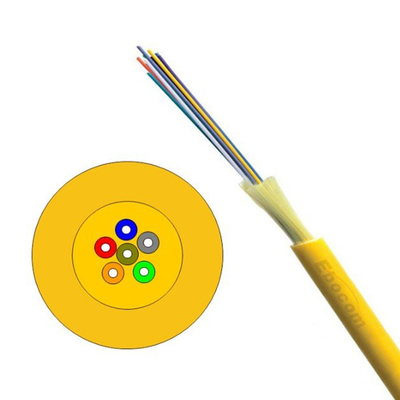

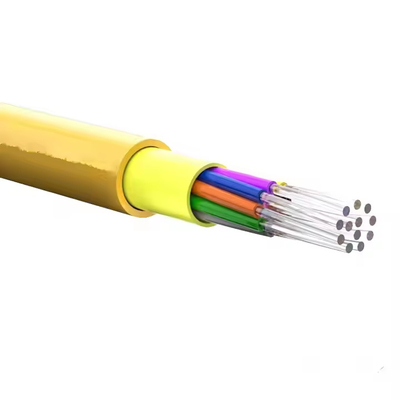

GJFJV type tight-buffered optical fiber bundle cable is made by evenly winding aramid yarn or high-strength glass yarn tight-buffered optical fibers as reinforcing members, and then covered with polyvinyl chloride sheath.



Features:

  1. Enhanced protection: The tight buffer provides excellent protection against physical damage, moisture, and environmental factors, ensuring the integrity and reliability of the optical fibers.
  2. Increased flexibility: The tight buffer layer makes the cable more flexible and allows for easier termination and handling during installation and maintenance processes.
  3. Small form factor: Due to the compact design, tight buffer cables have smaller overall diameters, making them easier to manage and install in limited space environments.
  4. Direct termination capabilities: The tight buffer design allows for direct termination of connectors onto the fiber, eliminating the need for additional protective elements like splice closures.



Applications:

.Suitable for Indoor distribution
·Pigtail jumper, patch cord
·Optical connection of Communication equipment and connection machine.
·Floor installation, maintenance friendly.









Optical Characteristics

Fiber Type Attenuation Overfilled launch Bandwidth Effective Modal Bandwidth 10GB/S Ethernet link length Min Bending Radius
Conditions 1310/1550nm 850/1300nm 850/1300nm 850nm 850nm
Unit dB/km dB/km MHZ.km MHZ.km m mm
G652D 0.36/0.22         16
G657A1 0.36/0.22         10
G657A2 0.36/0.22         7.5
50/125   3.0/1.0 ≥500/500     30
62.2/125   3.0/1.0 ≥200/500     30
OM3   3.0/1.0 ≥1500/500 ≥2000 ≥300 30
OM4   3.0/1.0 ≥3500/500 ≥4700 ≥550 30
B1-OM3   3.0/1.0 ≥1500/500 ≥2000 ≥300 7.5
B1-OM4   3.0/1.0 ≥3500/500 ≥4700 ≥550 7.5
