High Quality GYFXTY Central Loose Tube Non-Armored Outdoor Fiber Optic Cable with Parallel FRP Strength Member
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
걱정이 있으시면 24시간 온라인 서비스를 제공합니다.
x제품 상세 정보
| 인장 강도 | 1kn 1.5kn 2kn 3kn | 섬유 유형 | 단일 모드 |
|---|---|---|---|
| FRP | 0.5-2.8mm | 케이블 길이 | 1km 2km |
| 모델 이름 | 드롭 케이블 | 외피 재료 | 페이 / LSZH |
| 케이블 색상 | 검은색 | ||
| 강조하다 | Outdoor fiber optic cable with FRP strength,Non-armored FTTH drop cable,Parallel loose tube fiber cable |
||
제품 설명
Product Description

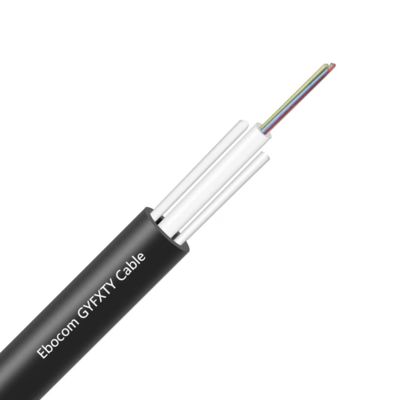

The GYFXTY Central Loose Tube Fiber Optic Cable is a non-armored outdoor cable specially designed for FTTH networks, backbone connections, and last-mile telecom installations. Its core contains a single central loose tube filled with water-blocking gel to protect the optical fibers and ensure low signal attenuation.
Two parallel FRP (Fiber Reinforced Plastic) strength members provide excellent tensile strength and non-metallic construction, making the cable ideal for areas with lightning risk or electromagnetic interference. Lightweight yet durable, this cable is known in some markets as Ground Drop Cable, delivering stable, high-bandwidth transmission for a wide range of outdoor applications.
Ebocom offers GYFXTY cables with high-quality G652D, G657A1, or G657A2 fibers, and supports OEM/ODM customization, including fiber count, jacket type, printing, and packaging to meet specific project requirements.
Key Features
-
Central Loose Tube Design for superior fiber protection and easy handling
-
Two Parallel FRP Strength Members for high tensile performance and all-dielectric safety
-
Non-Armored, Lightweight Construction for cost-effective transportation and installation
-
Excellent UV resistance, moisture blocking, and long-term reliability
-
Compatible with aerial, duct, or ground drop installations
-
OEM/ODM Service: customizable fiber count, jacket color, drum length, and print
Applications
-
FTTH (Fiber to the Home) networks
-
Telecommunication backbone and access networks
-
Aerial pole-to-pole or duct installations
-
Rural broadband and last-mile fiber connections
-
Electrically sensitive environments requiring all-dielectric cables
Technical Specifications
| Item | Specification |
|---|---|
| Fiber Type | Single-mode (G652D / G657A1 / G657A2) or Multimode optional |
| Fiber Count | 2–24 cores |

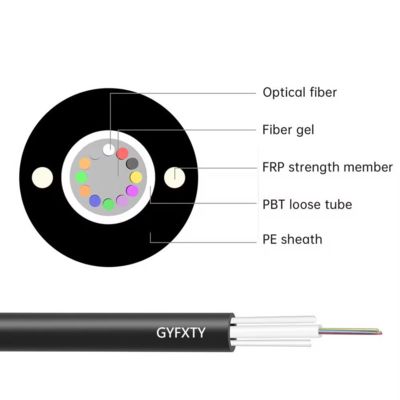

| Cable Structure | Central loose tube filled with water-blocking gel |
| Strength Member | Two parallel FRP (Fiber Reinforced Plastic) rods |
| Outer Jacket Material | UV-resistant PE or LSZH |
| Outer Diameter | Approx. 7.0 – 10.5 mm (customizable) |
| Installation Methods | Aerial, duct, or ground drop |
| Operating Temperature | -40°C to +70°C |
| Standards Compliance | ITU-T G.652/G.657, IEC 60794, ISO/IEC |
Why Choose Ebocom
-
13 Years of Manufacturing Experience in FTTH and outdoor fiber optic cables
-
Strict Quality Testing with an in-house product performance laboratory
-
Fast Production & Delivery, with daily capacity of up to 100 km
-
Proven global export experience for telecom and broadband projects
For bulk orders, OEM service, or a custom quotation, contact Ebocom today to get high-quality GYFXTY Ground Drop Cable with FRP strength members at competitive factory-direct prices.
