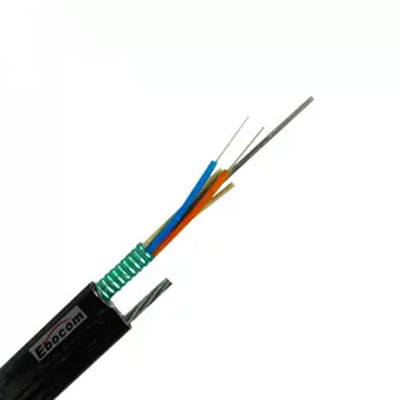

High-Quality 4~144 Core GYTC8S Self-Supporting Outdoor Fiber Optic Cablefor Long-Distance Network Installation
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
걱정이 있으시면 24시간 온라인 서비스를 제공합니다.
x제품 상세 정보
| 모델명 | GYTC8 | 설치 온도 | +60' Ｃ에 대한 -30' Ｃ |
|---|---|---|---|
| 포장 | 2-4km/wooden 드럼 | 생명 시간 | 25-30년 |
| 설치 | 자립하 안테나 | 섬유 범위 | 2-144 코어 |
| 재킷 재료 | 폴리에틸렌 (PE) | 장갑 | 강철 줄자는 강탈했습니다 |
| 공장 | 예 | 섬유 모델 | G652D G657A1 G657A2 |
| 강조하다 | 4~144 core outdoor fiber optic cable,GYTC8S self-supporting fiber cable,long-distance network installation fiber optic |
||
필요한 제품을 선택하고 게시판에서 당사와 소통 할 수 있습니다.
| Loose Tube |
|---|
제품 설명
Product Description:

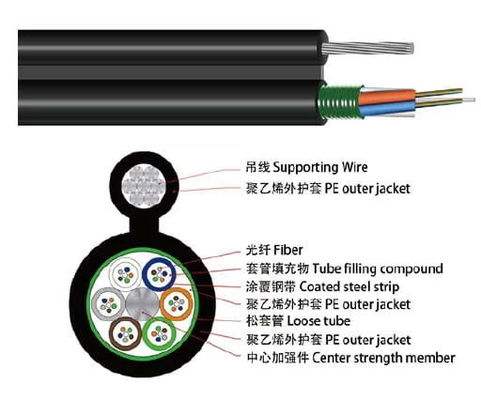

The GYTC8S fiber optic cable is a self-supporting Figure 8 outdoor optical cable designed for aerial installations and FTTH or access network projects. It integrates a messenger wire (supporting strand) and a steel tape armored optical core, providing both mechanical strength and excellent optical performance in harsh environments.
The messenger part — a galvanized steel wire or stranded steel cable — allows the cable to be easily suspended between poles without the need for additional supporting wires, significantly simplifying installation and reducing costs. The core is made up of loose tubes filled with water-blocking gel and single-mode or multimode fibers, ensuring reliable transmission and long-term stability.
The GYTC8S cable is suitable for aerial, outdoor, and last-mile FTTH applications, especially in rural broadband, CCTV systems, and telecom backbone networks. The steel tape armor provides strong protection against rodents, moisture, and mechanical impact, making it ideal for both urban and countryside deployments.
Key Features:
-
Figure 8 self-supporting design — Integrated messenger wire for easy aerial installation.
-
Steel tape armored — Enhances crush resistance and protection against rodents and environmental stress.
-
Water-blocking structure — Prevents moisture penetration and fiber damage.
-
High tensile strength — Ideal for long-span aerial installations.
-
Supports various fiber types — G.652D, G.657A1, OM2, OM3 available.
-
UV and temperature resistant — Durable in outdoor conditions (-40°C ~ +70°C).
-
Customizable messenger wire — Single steel wire or stranded steel cable (e.g., 7×1.0mm).
Technical Specifications:
| Item | Description |
|---|---|
| Cable Type | GYTC8S Self-Supporting Outdoor Fiber Optic Cable |
| Structure | Figure 8 design with messenger wire + loose tube armored cable |
| Messenger Wire | Galvanized steel wire or stranded steel cable (e.g., 7×1.0mm) |
| Fiber Type | Single-mode (G.652D / G.657A1) or Multi-mode (OM2 / OM3) |
| Core Count | 2–144 fibers |
| Armoring | Corrugated steel tape |
| Strength Member | Phosphated steel wire |
| Outer Sheath Material | PE |
| Installation Method | Aerial, self-supporting |
| Operating Temperature | -40°C to +70°C |
| Span Range | 50m – 200m depending on messenger wire diameter |
Applications:
-
FTTH (Fiber to the Home) aerial network deployments
-
Rural broadband and telecom access networks
-
CCTV and intelligent security systems
-
Long-span transmission lines
-
Industrial park and campus fiber infrastructure
Why Choose Ebocom?
As a professional optical cable manufacturer with over 12 years of experience, Ebocom offers:
-
Complete production lines for GYTC8S, GYXTC8S, ADSS, OPGW, GYTA, GYTS, and drop cables
-
OEM/ODM customization (fiber count, jacket color, messenger wire type, printing, and packaging)
-
Strict quality testing in our in-house performance laboratory
-
Fast delivery & competitive pricing directly from the factory
