48 Core GYTC8S Self-Supporting Fiber Optic Cable for Aerial Outdoor Network Installation
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
걱정이 있으시면 24시간 온라인 서비스를 제공합니다.
x제품 상세 정보
| 모델명 | GYTC8 | 설치 온도 | +60' Ｃ에 대한 -30' Ｃ |
|---|---|---|---|
| 포장 | 2-4km/wooden 드럼 | 생명 시간 | 25-30년 |
| 설치 | 자립하 안테나 | 섬유 범위 | 2-144 코어 |
| 재킷 재료 | 폴리에틸렌 (PE) | 장갑 | 강철 줄자는 강탈했습니다 |
| 공장 | 예 | 섬유 모델 | G652D G657A1 G657A2 |
| 강조하다 | 48 core self-supporting fiber optic cable,aerial outdoor fiber optic cable,GYTC8S outdoor network cable |
||
필요한 제품을 선택하고 게시판에서 당사와 소통 할 수 있습니다.
| Loose Tube |
|---|
제품 설명
Product Description:

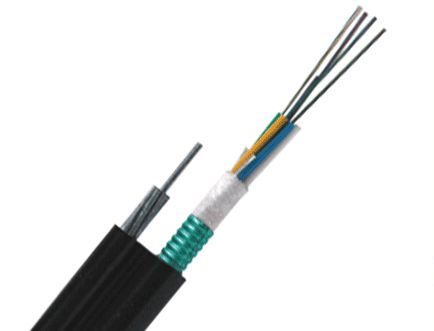

The 48-core GYTC8S optical cable is a self-supporting outdoor fiber cable specifically designed for aerial installations in telecom, CCTV, and broadband projects.

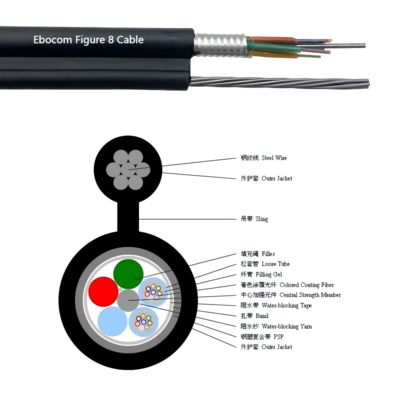

It combines a central loose-tube optical core with corrugated steel tape armor and a built-in messenger wire, forming the classic figure-8 (8-shape) structure. This design provides superior mechanical strength, weather resistance, and installation convenience for long-distance spans.
The 48 fibers are housed in multiple color-coded loose tubes, each filled with water-blocking gel for maximum protection against moisture. The corrugated steel tape offers excellent compression and rodent resistance, while the PE outer sheath ensures durability under UV and temperature variations.
The messenger wire section — usually a galvanized steel strand — supports the cable’s weight during aerial deployment, eliminating the need for separate suspension hardware.
This cable is widely used in FTTH backbone lines, municipal projects, rural broadband networks, and industrial communication systems that require a reliable and cost-effective aerial solution.
Main Features:
48-core high-capacity design — Suitable for large-scale backbone or access networks.
Integrated messenger wire — Self-supporting and easy to install on poles.
Corrugated steel tape armor — Strong protection against mechanical impact and rodent bites.
Water-blocking system — Prevents longitudinal water penetration.
Excellent tensile strength — Ideal for aerial spans from 50m to 500m.
UV-resistant PE sheath — Long-lasting outdoor durability.
Customizable structure — Optional messenger wire types and sheath colors available.
Technical Specifications:
| Item | Description |
|---|---|
| Cable Type | GYTC8S Self-Supporting Outdoor Fiber Optic Cable |
| Fiber Count | 48 cores |
| Fiber Type | Single-mode (G.652D / G.657A1) or Multi-mode (OM3 / OM4 optional) |
| Cable Structure | Figure-8 design with integrated messenger wire |
| Messenger Wire | Galvanized steel wire or 7-strand steel cable |
| Armoring Layer | Corrugated steel tape |
| Sheath Material | Black PE |
| Installation Method | Aerial, self-supporting |
| Operation Temperature | -40°C ~ +70°C |
| Span Distance | Typically up to 200 meters |
| Moisture Protection | Water-blocking gel + PSP armor |
Applications:
Long-distance aerial transmission lines
FTTH and FTTB backbone network construction
CCTV and monitoring systems
Industrial communication networks
Rural and suburban telecom infrastructure
Ebocom Advantage:
As a leading optical cable manufacturer, Ebocom offers:
Professional production lines for both armored and non-armored 8-figure cables
12+ years of manufacturing experience and strict ISO quality control
Flexible OEM/ODM services — fiber count, sheath color, printing, and packaging customizable
Stable delivery capacity — up to 100 km/day production capability
Reliable performance and competitive prices trusted by clients worldwide
