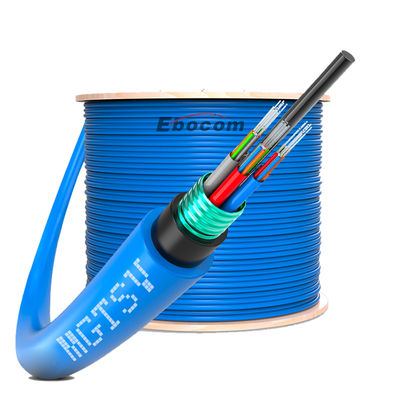

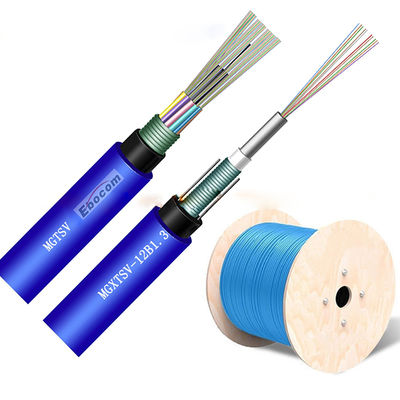

Flame Retardant Mining Fiber Cable MGTSV G652D 12 24 36 48 core Double Armoured for Communication
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
걱정이 있으시면 24시간 온라인 서비스를 제공합니다.
x제품 상세 정보
| 케블 모형 | MGTSV 광섬유 케이블 | 강도 멤버 | 강철 와이어 테이프 |
|---|---|---|---|
| 재킷의 재료 | Pe Flame 지연 PE LSZH | 굽힘 반경 | 정적 10*케이블-D 동적 20*케이블-D |
| 작동 온도 | -40' C~+70' Ｃ | 색상 | 검은색 |
| 섬유 수 | 4-288cores | 섬유 종류 | G652D G657A1 G657A2 |
| 배송일 | 7~15일 | ||
| 강조하다 | Flame retardant mining fiber cable,MGTSV G652D armored optic cable,Double armoured communication cable |
||
제품 설명
Product description
MGTSV is suitable for coal, gold, and iron mines. Its flame-retardant and rodent-proof properties make it an ideal choice for mining operations. It is particularly suitable for accident-prone mines, ensuring uninterrupted communication and minimizing losses in the event of an accident.
The steel armor helps protect the cable from rodent bites and provides bulletproof protection. The double-sheath structure offers excellent moisture resistance and pressure resistance. Furthermore, the outer sheath is flame-retardant, and the loose-tube material itself has excellent hydrolysis resistance. Waterproof performance ensures safety during underground operations
Application
• Certified for use by national authorities
• Intended for mines, mine shafts and cable trays used for mining applications
2.Features
Excellent fire resistance.
High-strength, hydrolysis-resistant loose-sleeve tubing.

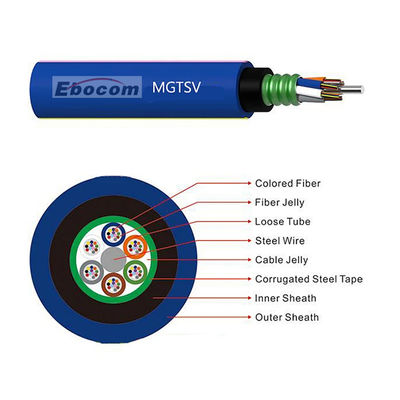

Double-layer wrapping and single-layer reinforcement design provide superior compressive strength, waterproofing, and rodent resistance. The loose-sleeve tubing is wrapped in non-woven fabric for waterproofing. Special internal filling ensures optimal fiber protection.
Blue PVC outer layer: fire resistant; blue for easy identification.
Compressive strength and flexibility.
3. Technical parameters
| Cable Type | Fiber Count | Tubes+Fills | Cable Diameter mm |
Cable Weight Kg/km |
Tensile Strength Long/Short Term N |
Crush Resistance Term N/100m |
Bending Radius Static/Dynamic mm |
| MGTSV-2～6 | 2～60 | 5 | 12.2 | 156 | 1000/2000 | 500/1500 | 15D/30D |
| MGTSV-62～72 | 62～72 | 6 | 13.8 | 210 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-74～96 | 74～96 | 8 | 15.1 | 242 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-98～120 | 98～120 | 10 | 17.2 | 280 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-122～144 | 122～144 | 12 | 19.0 | 320 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-146～216 | 146～216 | 18 | 19.0 | 320 | 1750/3500 | 500/1500 | 15D/30D |
