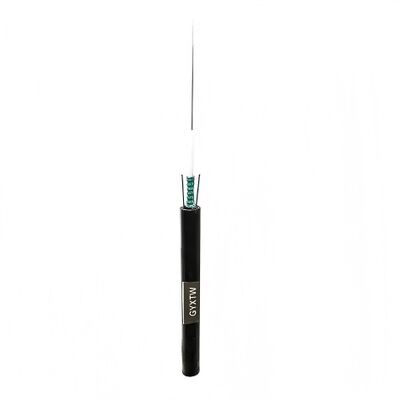

GYXTW 4 Core Single-Mode Outdoor Fiber Optic Cable With Steel Tape Armored
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
걱정이 있으시면 24시간 온라인 서비스를 제공합니다.
x제품 상세 정보
| 애플리케이션 | 통신, FTTH FTTB FTTX 네트워크, 항공/덕트 | 섬유 종류 | G652d |
|---|---|---|---|
| 섬유 수 | 4 코어 | 재킷 소재 | 체육 |
| 포장 | 2-4km/wooden 드럼 | 강도 멤버 | 스틸 와이어/ 스틸 테이프 |
| OEM | 셀프 | ||
| 강조하다 | 4 core single-mode fiber optic cable,steel tape armored outdoor cable,outdoor fiber optic cable with warranty |
||
제품 설명
Product Overview

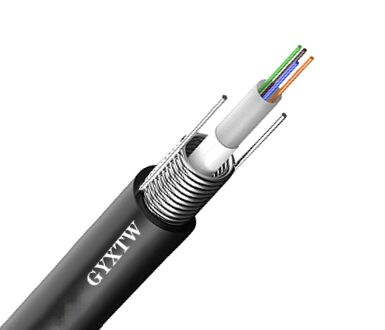

This model adopts a central loose tube that houses four single-mode fibers (G652D or G657 series). The tube is filled with water-blocking gel to ensure long-term moisture resistance. Externally, a layer of corrugated steel tape armor protects the cable from mechanical impact, compression, and accidental damage.
Two parallel steel wires provide additional tensile capacity, making the cable suitable for aerial spans and outdoor pulling. The outer jacket is made of high-density polyethylene for UV resistance and durability in harsh weather.
Advantages at a glance:
-
Stable optical transmission with single-mode G652D/G657
-
High tensile strength for aerial deployment
-
Steel tape armor enhances crush and rodent resistance
-
Compact and flexible for easy installation
-
Long-term outdoor performance with PE UV-resistant jacket
Technical Specifications
| Item | Details |
|---|---|
| Cable Type | GYXTW Outdoor Armored Fiber Cable |
| Fiber Count | 4 Core |
| Fiber Type | Single-mode G652D / G657A1 / G657A2 |
| Construction | Central loose tube |
| Tube Material | PBT |
| Water Blocking | Thixotropic gel |
| Strength Members | Two parallel galvanized steel wires |
| Armor Layer | Corrugated steel tape |
| Outer Jacket | HDPE (UV-resistant) |
| Nominal Diameter | Customizable based on project needs |
| Installation Load | Suitable for aerial and duct installation |
| Operating Temperature | –40°C to +70°C |
| Compliance | ITU-T standards / IEC standards / RoHS |
Typical Applications
-
Outdoor FTTx distribution networks
-
Aerial fiber routes on poles
-
Telecommunication backbone extensions
-
Urban and rural broadband deployment
-
Campus and industrial park optical cabling
