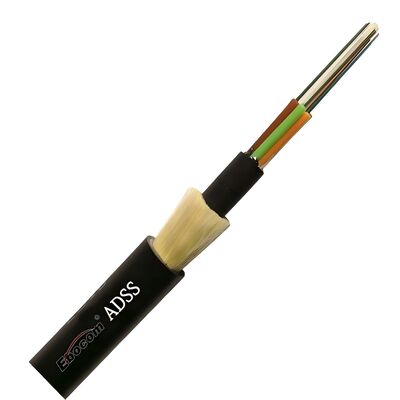

72 Core ADSS Fiber Optic Cable Double Jacket With Aramid Yarn Reinforced
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
걱정이 있으시면 24시간 온라인 서비스를 제공합니다.
x제품 상세 정보
| 섬유 종류 | G652d | 섬유 수 | 72 핵심 |
|---|---|---|---|
| 재킷 소재 | 체육 | 포장 | 2-4km/wooden 드럼 |
| 작동 온도 | -40°C +70°C | 기간 | 100m-800m |
| 강도 멤버 | FRP+케블라 아라미드 원사 | OEM | 예 |
| 구조 | 좌초 된 느슨한 튜브 | ||
| 강조하다 | 72 core ADSS fiber optic cable,double jacket ADSS fiber cable,aramid yarn reinforced fiber optic cable |
||
제품 설명
Product Overview
This 72 Core ADSS (All-Dielectric Self-Supporting) Cable is a high-capacity aerial solution designed for power-congested environments. Built with a 6-loose-tube configuration and reinforced with premium Aramid Yarn, it offers a perfect balance of lightweight flexibility and extreme tensile strength. Featuring a Double Jacket design, it provides an extra layer of defense against mechanical stress and environmental degradation.
Detailed Application Scenarios
The 72 Core ADSS cable is engineered for versatility across several demanding infrastructures:
-
High-Voltage Power Corridors: Ideal for installation on existing power transmission lines (up to 110kV or higher with AT sheath) without power interruptions, thanks to its fully dielectric design.
-
Long-Span Aerial Deployments: Perfect for crossing rivers, valleys, or highways where traditional support structures are limited. The Aramid Yarn allows for spans ranging from 100m to over 600m.
-
Smart Grid & Utility Networks: Facilitates real-time monitoring, substation automation, and data backhaul for modern power utility communication systems.
-
Harsh Weather Zones: Specifically designed for regions prone to high winds, heavy icing, or intense UV exposure where standard cables might fail.
-
Inter-City Telecommunication: Provides a high-density fiber backbone for FTTH (Fiber to the Home) or 5G base station connectivity in rural and urban aerial deployments.
Technical Specifications
| Item | Specification Details |
| Fiber Count | 72 Cores |

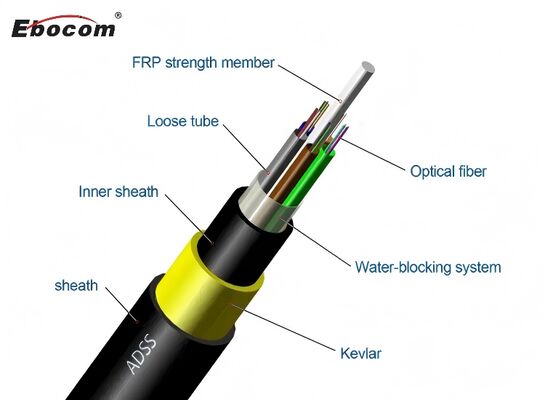

| Mechanical Design | 6 Loose Tubes (12 Fibers/Tube) |
| Reinforcement | High-Modulus Aramid Yarn |
| Jacket Structure | Double Jacket (Inner PE + Outer PE/AT) |
| Standard Span | 100m, 200m (Customizable) |
| Fiber Type | G.652.D (Standard Singlemode) |
| Life Expectancy | >25 Years |
About Shandong Yibo Optronics
Shandong Yibo Optronics Technology Co., Ltd. is a professional manufacturer with 13 years of specialized experience in fiber optic technology. Our competitive edge lies in the fusion of manufacturing scale and scientific precision:
-
Integrated Testing Center: We operate an independent Material & Performance Lab, ensuring every 72-core ADSS cable meets strict tensile, crush, and temperature cycling standards before shipping.
-
Quality-Driven Production: Our decade-plus expertise allows us to optimize the "Fiber Excess Length" within the 6 loose tubes, preventing signal loss under extreme mechanical tension.
-
Proven Reliability: By controlling the sourcing of high-grade Aramid Yarn and HDPE materials, we deliver cables that guarantee long-term network stability for global utility and telecom partners.
