All Dielectric Self Supporting Fiber Optic ADSS Cable 48 96 Core for Networking
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
걱정이 있으시면 24시간 온라인 서비스를 제공합니다.
x제품 상세 정보
| 섬유 종류 | G652D/G657A1 A2 | 섬유 번수 | 2-288 핵심 |
|---|---|---|---|
| 강도 부재 | FRP | 재킷 | PE |
| 재킷 색 | 블랙 | 브랜드 | OEM |
| 강조하다 | ADSS Fiber Optic Cable,Networking ADSS Fiber Optic Cable,Self Supporting ADSS Fiber Optic Cable |
||
제품 설명
Description

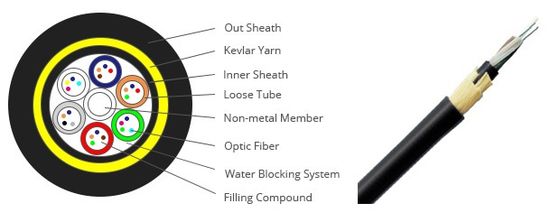

ADSS cable, which stands for All-Dielectric Self-Supporting cable, is a type of fiber optic cable designed for aerial applications, particularly in environments near high-voltage power lines. It's unique because it doesn't require a separate messenger wire for support, making it ideal for one-step installation on poles and towers
Features&Application
1.Utility Companies:
ADSS cables are widely used by utility companies for transmitting data and voice communications over power lines
2.Telecommunications:
They are also used by telecommunications companies for providing high-speed internet and other communication service
3.Campus Backbones:
ADSS cables are suitable for establishing reliable communication links within campuses and between building
4.Long-Span Applications:
ADSS cables, particularly those with long-span designs, can be used for installations where long distances need to be covered between support structure
Specification

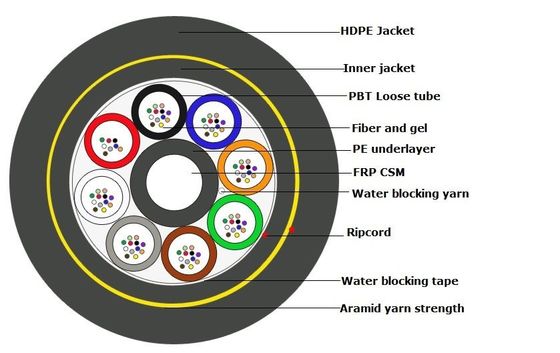

| Fiber Count | 12 | 24 | 36 | 48 | 96 | 144 | |
| Fiber Count Per Tube | 6 | 6 | 6 | 12 | 12 | 12 | |
| Loose Tube | Material | PBT | |||||
| Water Blocking Material | Fiber Jelly | ||||||
| Counts | 2 | 4 | 6 | 4 | 8 | 12 | |
| Central Strength Member | Material | FRP Rod (Coated with PE if needed) | |||||
| Counts | 2.2 | 2.2 | 2.2 | 2.5 | 2.5 | 2.5 | |
| Overall Diameter (nom.)(mm)(±0.2) | 10.3 | 10.4 | 10.4 | 11 | 12.3 | 14.9 | |
| Outer Jacket | Material | HDPE, Black | |||||
| Nominal Thickness (mm) | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | |
| Cable Weight | Kg/Km | 73 | 76 | 76 | 86 | 109 | 162 |
| Temperature Range | Operation | -30°C~+70°C | |||||
| Storage | -30°C~+70°C | ||||||
| Installation | -10°C~+60°C | ||||||
